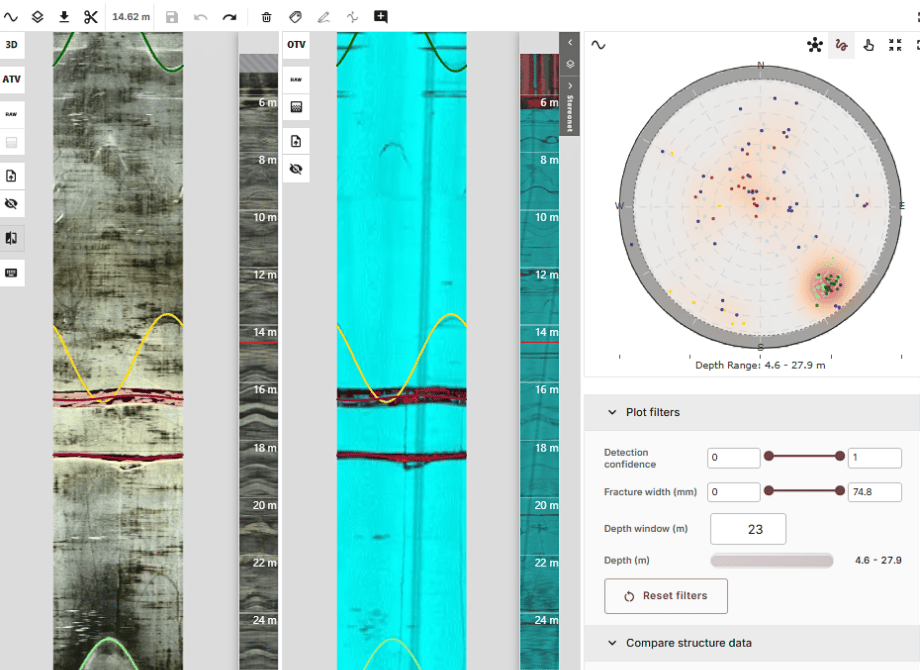

Automated televiewer data interpretation in minutes

An automated software platform built for mining and geoscience teams.

Proven results

Typical borehole processing time
<5 min
Mine and exploration sites
40+
Televiewer data processed
>500,000 m

Greater efficiency

Move from raw data to decision-making faster.

Depth
15.50 m
Structures
0

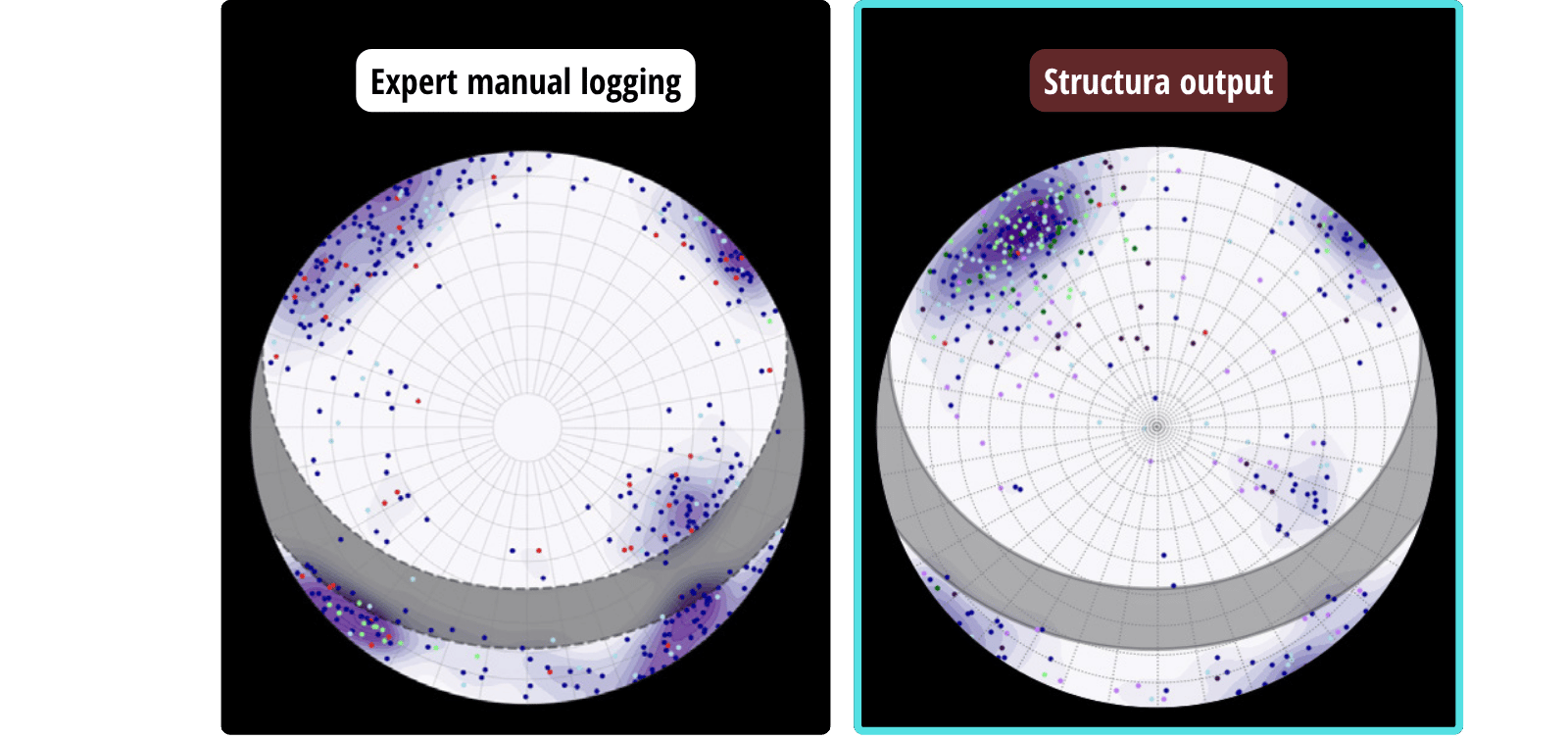

Consistent, validated results

Validated against expert manual logging.

N

One dot per structure

  • CB 455
  • OB 56
  • OJ 33
  • F 20
  • CJ 11
  • CS 9
  • V 8
  • OS 3

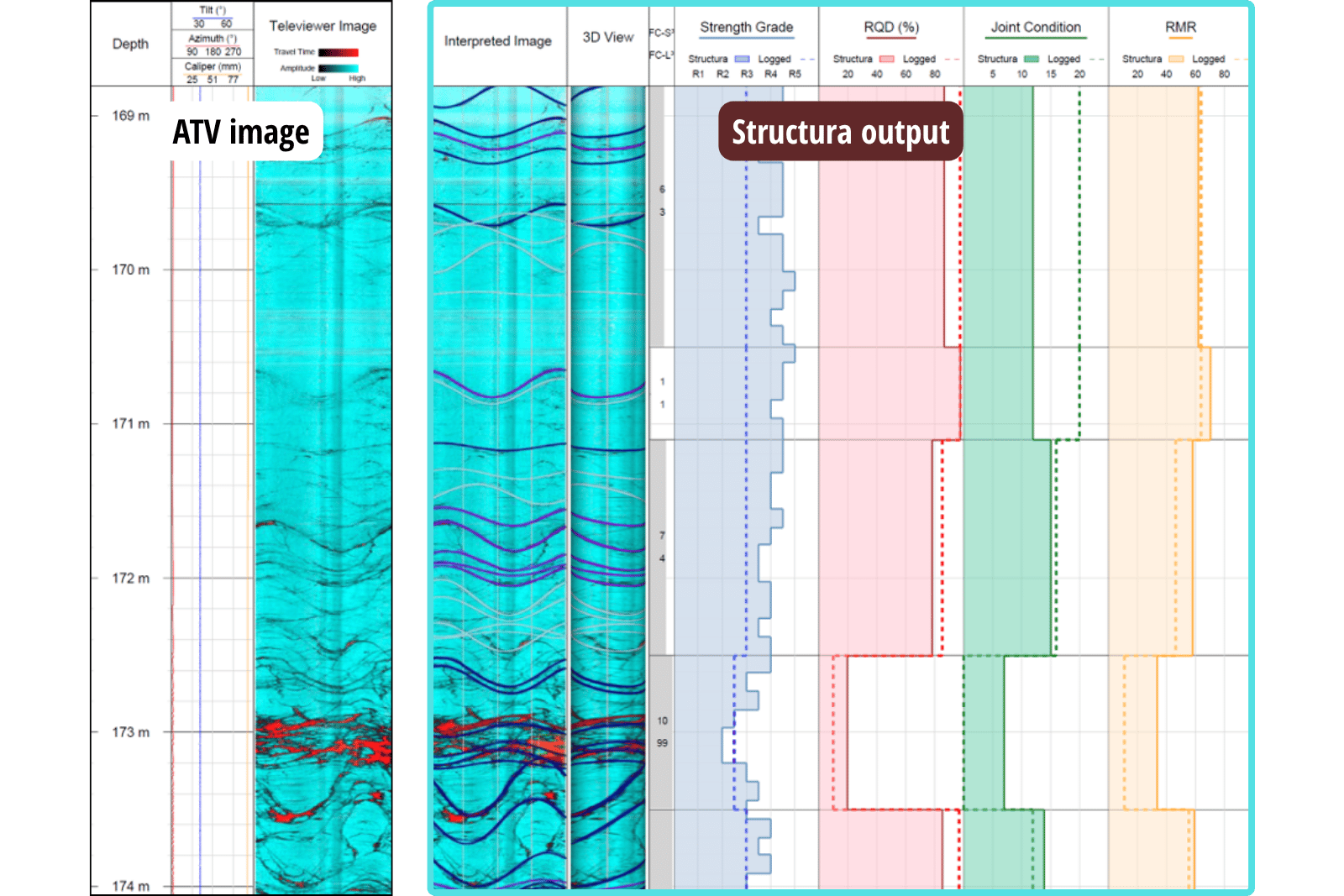

More value from existing data

Classification. Aperture. Roughness.
From ATV: strength, RQD, joint condition and RMR.

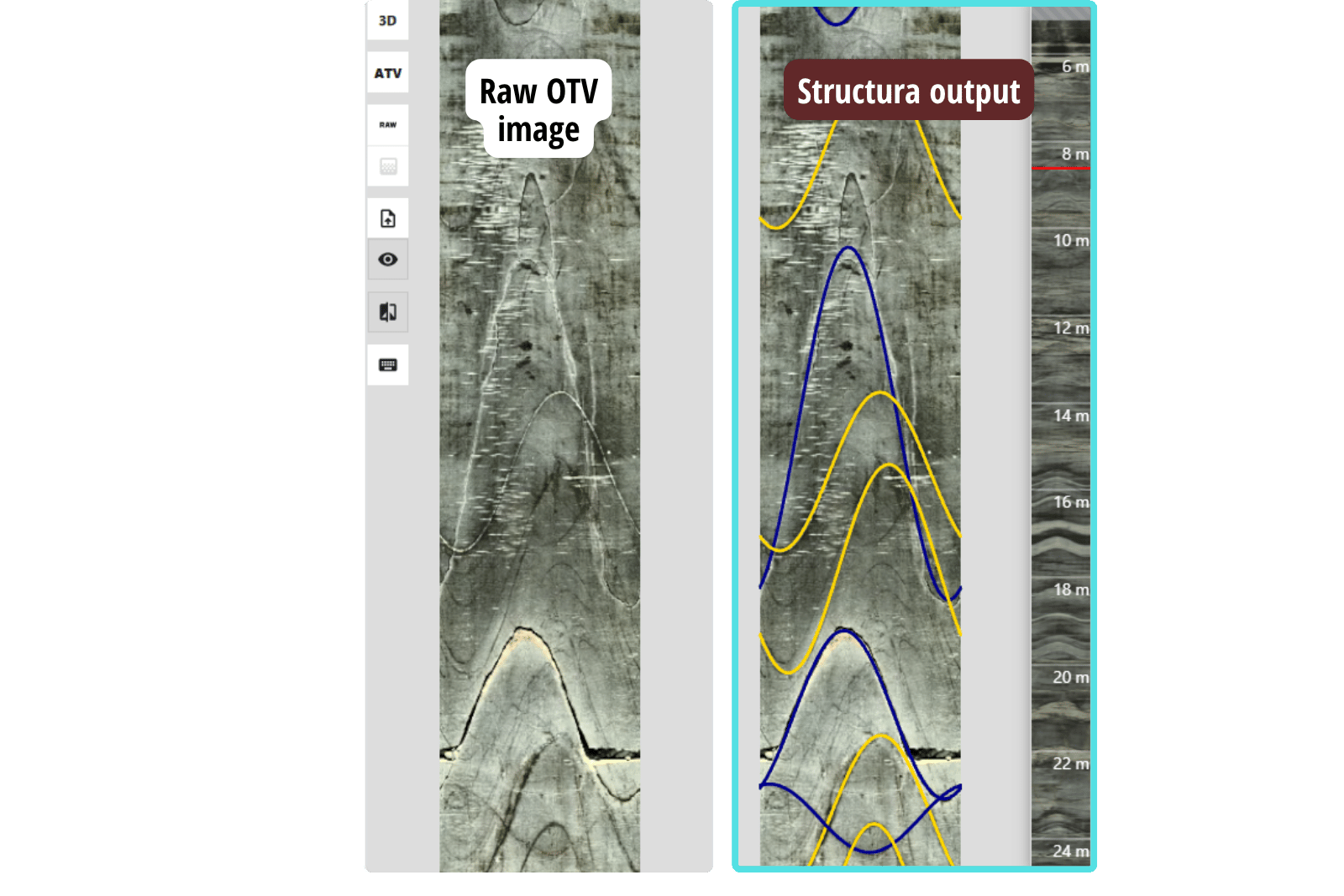

Structure log DEMO-06 · Optical televiewer · 96 mm 19.0–24.0 m · demo hole Simplified view of a Structura log Depth m Televiewer image N E S W N Structures dip 0–90° Aperture mm Roughness Ra Fractures open, per m Picks per m Image quality % 192021222324 CB Closed beddingOB Open beddingCJ Closed jointOJ Open jointF FaultV Vein

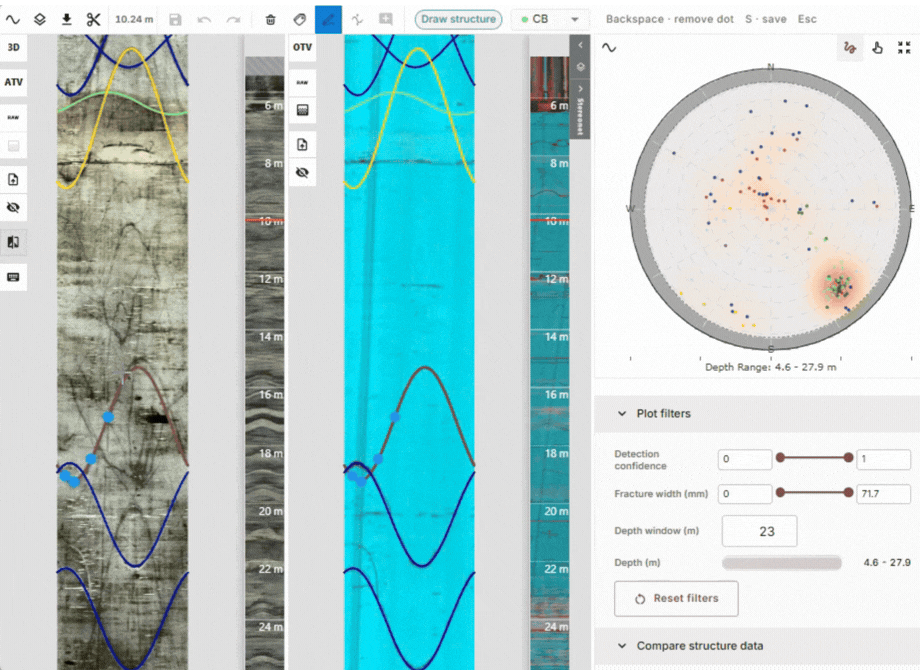

How Structura works

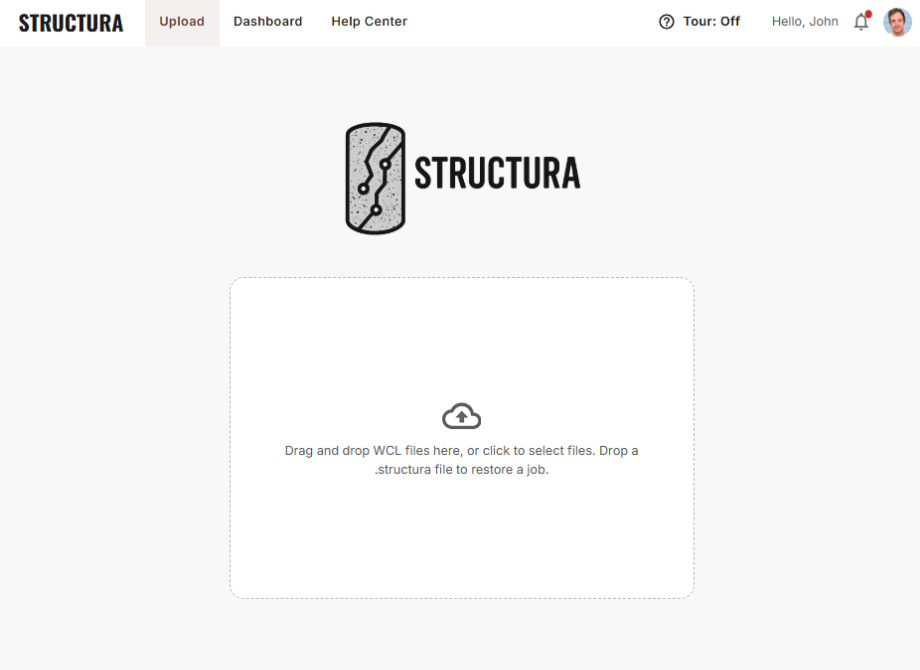

Upload page with a demo optical televiewer file and its settings

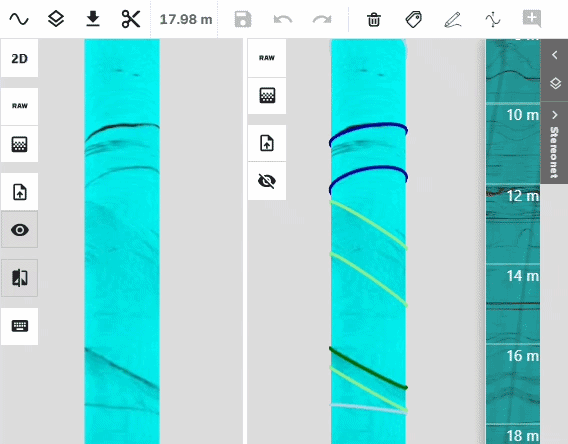

Reprocess years of historical televiewer data in a fraction of the time

Batch-process legacy datasets using a consistent interpretation methodology.

0 / 15 holesone disc per structure

2025 pilot · ~2,750 metres of historical televiewer data

Validated in collaboration with Rio Tinto Kennecott Copper

67%
Estimated reduction in ATV data turnaround time
Equivalent or better
Quality results compared with expert manual logging
10–20%
Of manually processed holes had critical orientation errors, found by Structura

35+

Years of geotechnical engineering expertise

Built by engineers at BGC Engineering.

Learn more about BGC

Questions

How accurate are Structura’s results?
Will Structura work with my site’s televiewer data?

Structura works with most standard ATV and OTV datasets. Its built-in image quality indicator flags low-quality intervals, so you know where additional review may be needed.

Does Structura integrate with other engineering software?

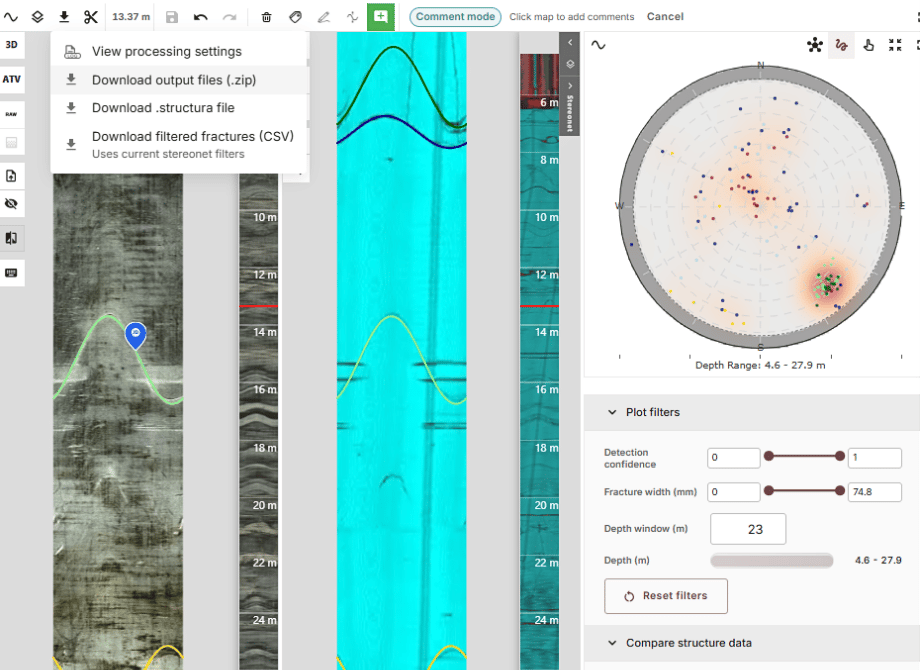

Yes. Structura exports results in standard CSV format.

Will my data be secure?

Yes. Structura is cloud-hosted on Microsoft Azure and has successfully completed cybersecurity reviews by major mining companies.

What product licence options does Structura offer?

For consultants and project-based users, Structura offers usage-based licensing tied to the volume of data processed. Mining companies can choose site-based or company-wide licensing to support ongoing use across their operations.

To discuss the licensing model that best fits your organization, book a free demo or email contact@structurageo.com.
